User Interface#

The lnav TUI displays the content of the current “view” in the middle, with status bars above and below, and the interactive prompt as the last line.

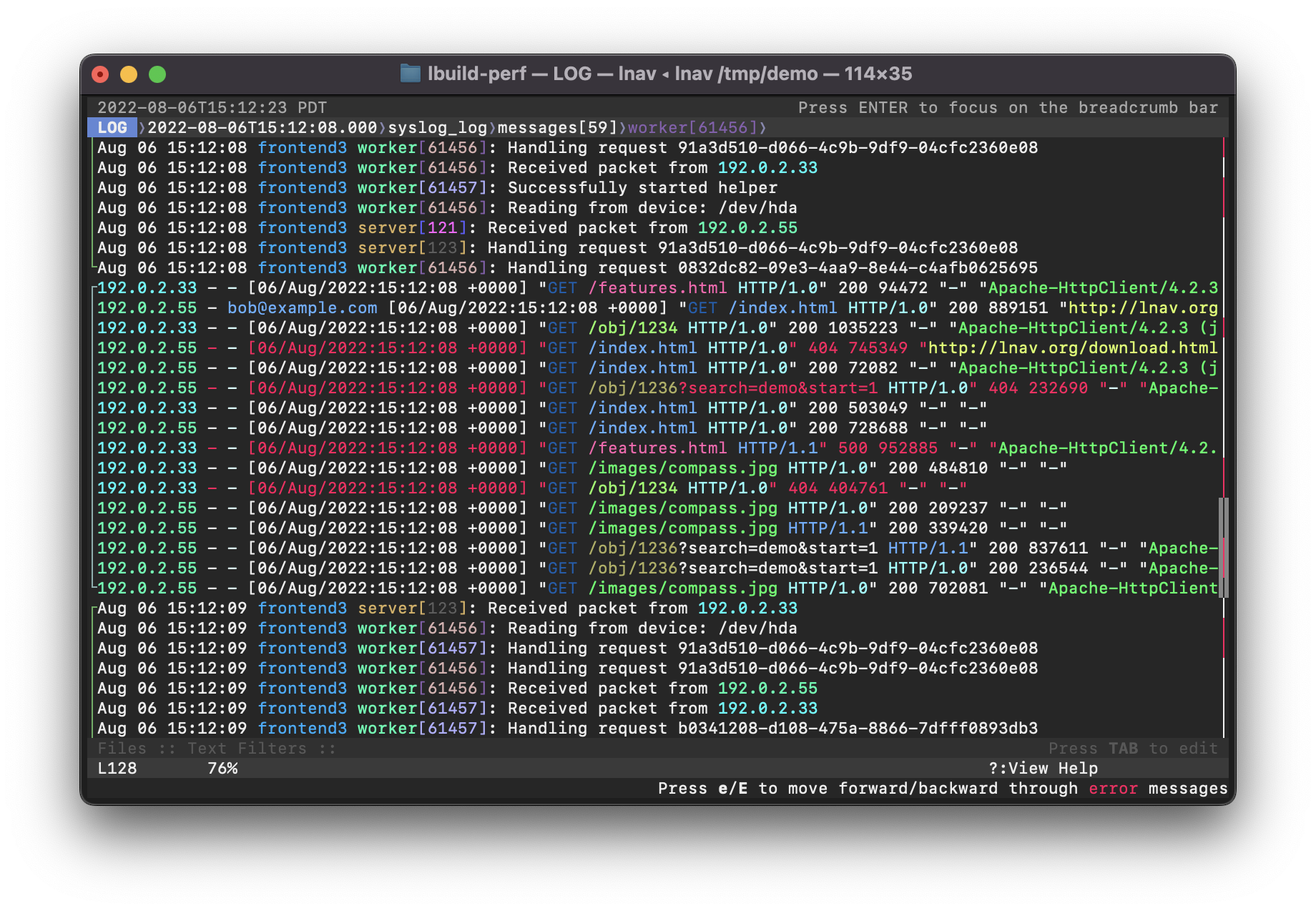

Screenshot of lnav viewing syslog and web access_log messages.#

The default view shows the log messages from the log files that have been loaded. There are other views for displaying content like plaintext files and SQL results. The Views section describes the characteristics of each view in more detail. You can switch to the different views using the hotkeys described in the Display section or by pressing ENTER to activate the breadcrumb bar, moving to the first crumb, and then selecting the desired view. You can switch back to the previous view by pressing q. You can switch forward to the new view by pressing a. If the views are time-based (e.g. log and histogram), pressing Shift + q and Shift + a will synchronize the top times in the views.

lnav provides many operations to work with the log/text data in the main view. For example, you can add comments and tags to log messages. By default, the top line is used as the reference point to edit the comment or tags. Alternatively, you can press Ctrl + x to switch to “cursor” mode where the “focused” line is highlighted and most operations now work with that line. When in “cursor” mode, the and keys now move the focused line instead of scrolling the view. Jumping to bookmarks, like errors, will also move the focused line instead of moving the next error to the top of the view.

The right side of the display has a proportionally sized ‘scrollbar’ that shows:

  • the current position in the file;

  • the locations of errors/warnings in the log files by using red or yellow coloring;

  • the locations of search hits by using a tick-mark pointing to the left;

  • the locations of bookmarks by using a tick-mark pointing to the right.

Top Status Bar#

The top status bar shows the current time and messages stored in the lnav_user_notifications table.

Below the top status bar is the breadcrumb bar that displays the semantic location of the focused line in the main view. For example, within a pretty-printed JSON document, it will show the path to property at the top of the view. The actual content of the bar depends on the current view and will be updated as you navigate around the main view. The bar can also be used to navigate around the document by focusing on it.

Configuration Panels#


Screenshot of the header for the configuration panels when they are hidden.#

After the main view content, there is a header bar for two configuration panels: Files and Filters. These panels provide visual access to parts of lnav’s configuration. To access the panels, press the TAB key. To hide the panels again, press q.

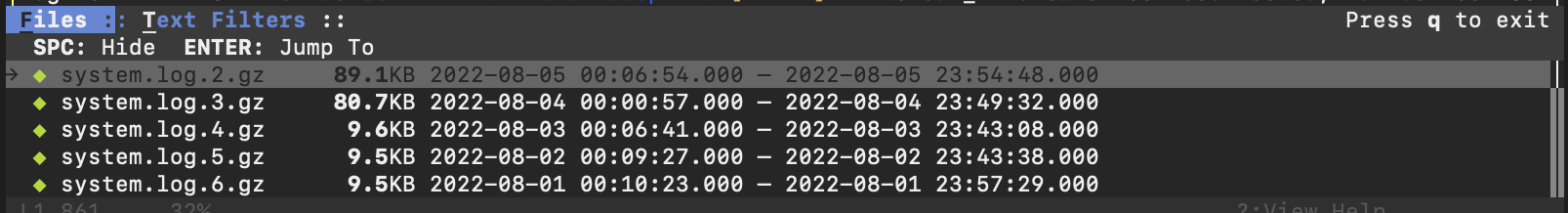

Screenshot of the files panel showing the loaded files.#

The Files panel is open initially to display progress in loading files. The following information can be displayed for each file:

  • the “unique” portion of the path relative to the other files;

  • the amount of data that has been indexed;

  • the date range of log messages contained in the file;

  • the errors that were encountered while trying to index the file;

  • the notes recorded for files where some automatic action was taken, like hiding the file if it was seen as a duplicate of another file.


Screenshot of the filters panel showing an OUT and a disabled IN filter.#

If the view supports filtering, there will be a status line showing the following:

  • the number of enabled filters and the total number of filters;

  • the number of lines that are not displayed because of filtering.

To edit the filters, you can press TAB to change the focus from the main view to the filter editor. The editor allows you to create, enable/disable, and delete filters easily.

Bottom Status Bar#

The second to last line is the bottom status bar, which shows the following:

  • the line number of the focused line, starting from zero;

  • the location within the view, as a percentage;

  • the current search hit, the total number of hits, and the search term;

  • the loading indicator.

When the interactive prompt is active, this bar can show the prompt description, help text, or error message.


Finally, the last line on the display is where you can enter search patterns and execute internal commands, such as converting a unix-timestamp into a human-readable date. The following key-presses will activate a corresponding prompt:

  • / - The search prompt. You can enter a PCRE2-flavored regular expression to search for in the current view.

  • : - The command prompt. Commands are used to perform common operations.

  • ; - The SQL prompt. SQL queries can be used for log analysis and manipulating lnav’s state.

  • | - The script prompt. Enter a path to the lnav script to execute, along with the arguments to pass in.

The command-line is by the readline library, so the usual set of keyboard shortcuts can be used for editing and moving within the command-line.


The accessible content within lnav is separated into the following views.


The log view displays the log messages from any loaded log files in time order. This view will be shown by default if any log files were detected. If plain text files were also loaded, they will be available in the TEXT view, which you can switch to by pressing t.

On color displays, the log messages will be highlighted as follows:

  • Errors will be colored in red;

  • warnings will be yellow;

  • search hits are reverse video;

  • various color highlights will be applied to: IP addresses, SQL keywords, XML tags, file and line numbers in Java backtraces, and quoted strings;

  • “identifiers” in the messages will be randomly assigned colors based on their content (works best on “xterm-256color” terminals).


If the coloring is too much for your tastes, you can change to the “grayscale” theme by entering the following command:

:config /ui/theme grayscale

Timestamps in log messages will be rewritten to the local timezone (or the timezone specified by TZ) automatically if they include a timezone component. If a file’s timestamps do not include a timezone, they will be treated as if they are from the local zone. You can change the zone to use for these types of files using the :set-file-timezone command.


If a log message has a timestamp that is out-of-order with its neighboring messages, the timestamp will be highlighted in yellow. When one of these messages is focused, an overlay will display the difference between the “actual time” and the “received time”. The “actual time” is the original textual timestamp. The “received time” is the time of an earlier message that is larger than this log message’s time.

The source file name for each message can be displayed by scrolling left. Scrolling left once will show the shortened version of the file name relative to the other files that are loaded. In the shortened version, the unique portion of the file name will be in square brackets. Scrolling left a second time will show the full path.

The breadcrumb bar will show the following crumbs:

  • the timestamp for the focused line;

  • the log format for the focused line;

  • the name of the file the focused line was pulled from;

  • the “operation ID” of the focused log message, if it is supported by the log format.

These crumbs are interactive and can be used to navigate to different parts of the log view. For example, selecting a different value in the log format crumb will jump to the first message with that format.

The file crumb will show a “↻” icon if the file is from the output of a FIFO, :sh command, or data that was piped into the standard input. When the pipe is closed, the icon will disappear.


The text view displays files for which lnav could not detect any log messages.

Press t to switch to the text view. While in the text view, you can press f or Shift + F to switch to the next / previous text file.

The breadcrumb bar will show the name of the file and any structure that was discovered in the content. The file crumb will show a “↻” icon if the file is from the output of a FIFO, :sh command, or data that was piped into the standard input. When the pipe is closed, the icon will disappear.

If the content is piped into lnav through standard input, a FIFO, or a :sh command, the time that lines are received are recorded. You can press Shift + T to view the elapsed time like in the LOG view. The breadcrumb bar will also show the received time of the focused line after the file name crumb. If the output being shown is from a :sh command, you can press Ctrl + C to send a SIGINT to the child process without killing lnav itself.

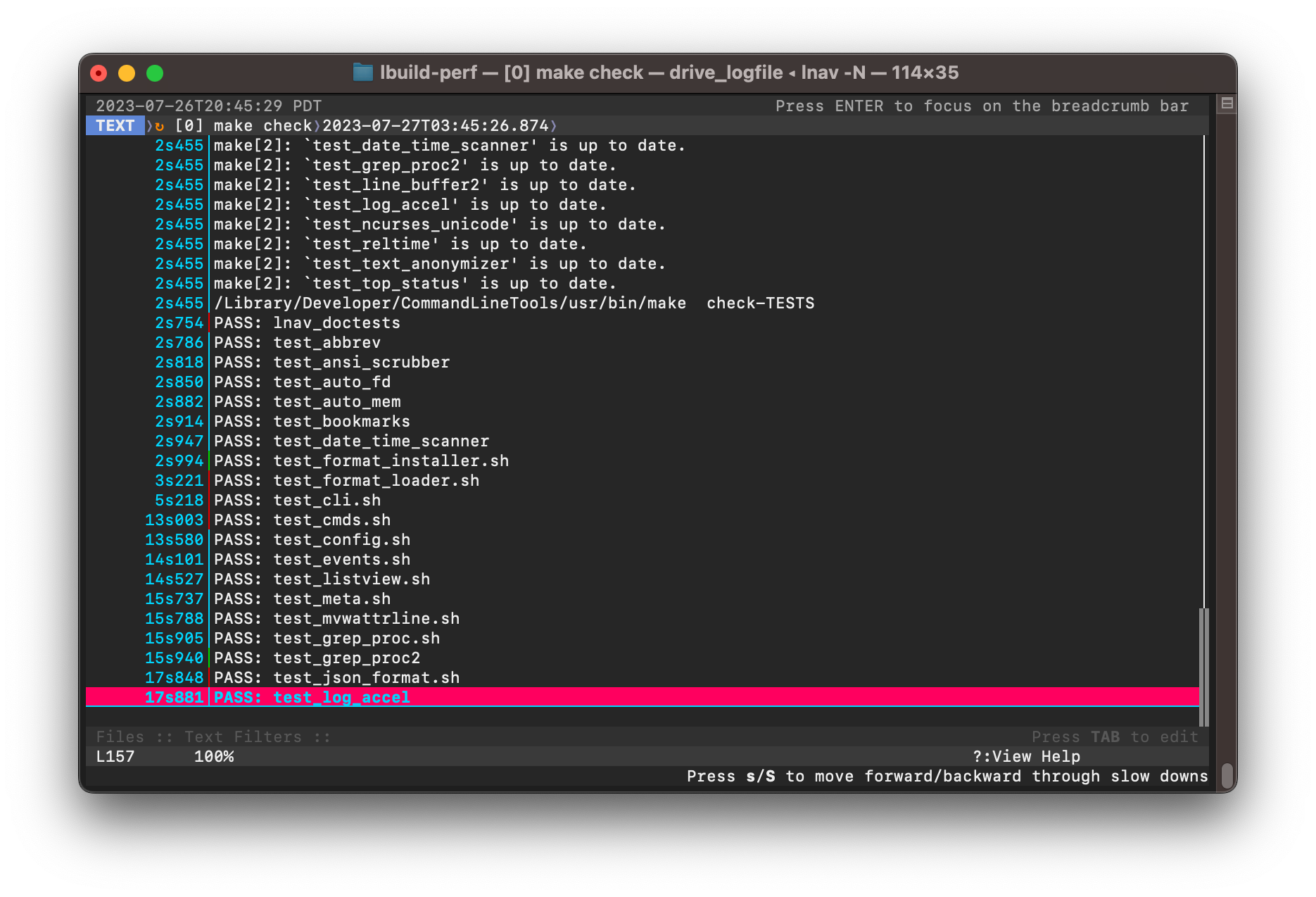

Screenshot of the TEXT view showing the output of sh make check. Each line is timestamped internally when it was received so it’s possible to view how long each test is taking to run. The “↻” icon next to the file name in the breadcrumb bar means that the make is still running.#


Files with an .md (or .markdown) extension will be treated as Markdown files and rendered separately.


Viewing the lnav file.#


The DB view shows the results of queries done through the SQLite interface. You can execute a query by pressing ; and then entering a SQL statement.

Press v to switch to the database result view.

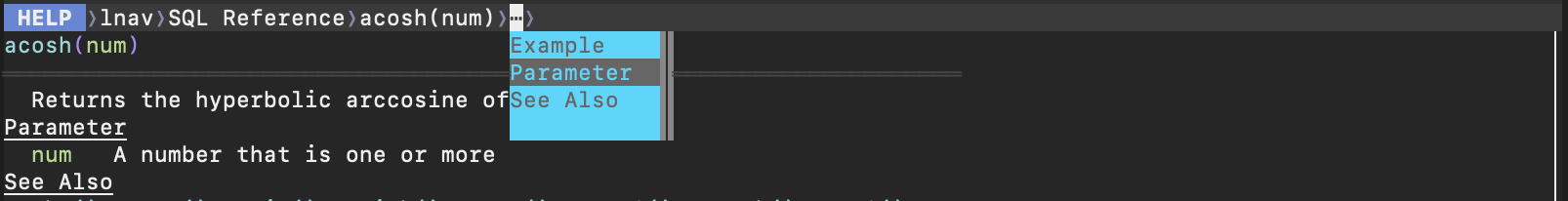

The help view displays the builtin help text. While in the help view, the breadcrumb bar can be used to navigate to different sections of the document.

Press ? to switch to the help view.


The histogram view displays a stacked bar chart of messages over time classified by their log level and whether they’ve been bookmarked.

Press i to switch back and forth to the histogram view. You can also press Shift + i to toggle the histogram view while synchronizing the top time. While in the histogram view, pressing z / Shift + z will zoom in/out.



This feature is available in v0.12.0+.


Screenshot of the Gantt chart view when viewing logs from the VMWare Update Manager. Most rows show API requests as they are received and processed.#

The Gantt Chart view visualizes operations over time. The operations are identified by the “opid” field defined in the log format. In the view, there is a header that shows the overall time span, the narrowed time span around the focused line, and the column headers. Each row in the view shows the following:

  • The duration of the operation

  • Sparklines showing the number of errors and warnings relative to the total number of messages associated with the OPID.

  • The OPID itself.

  • A description of the operation as captured from the log messages.

The rows are sorted by the start time of each operation.

If an operation row is in the focused time span, a reverse-video bar will show when the operation started and finished (unless it extends outside the time span). As you move the focused line, the focused time span will be adjusted to keep the preceding and following five operations within the span.

The preview panel at the bottom of the display will show the messages associated with the focused operation.

The following hotkeys can be useful in this view:

  • p – If the log format defined sub-operations with the opid/subid property, this will toggle an overlay panel that displays the sub-operation descriptions.


    Screenshot showing the same log as above after pressing p. The overlay panel shows a breakdown of sub-operations performed while processing the main operation.#

  • Shift + q – Return to the previous view and change its focused line to match the time that was focused in the gantt view.

  • Shift + a – After leaving the gantt view, pressing these keys will return to the Gantt view while keeping the focused time in sync.


The pretty-print view takes the text displayed in the current view and shows the result of a pretty-printer run on that text. For example, if a log message contained an XML message on a single line, the pretty-printer would break the XML across multiple lines with appropriate indentation.

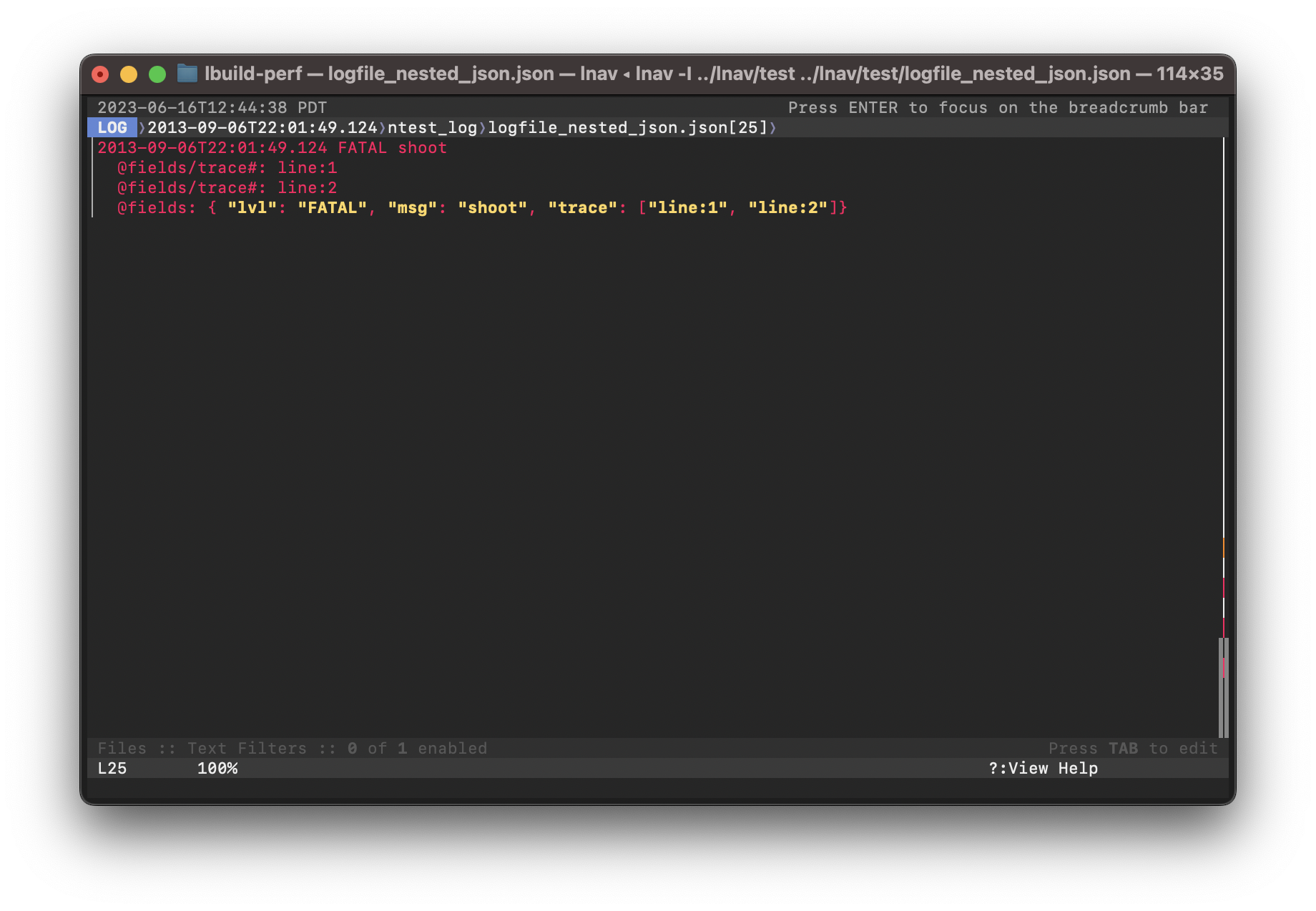

Screenshot of a log message with a flat JSON object.#

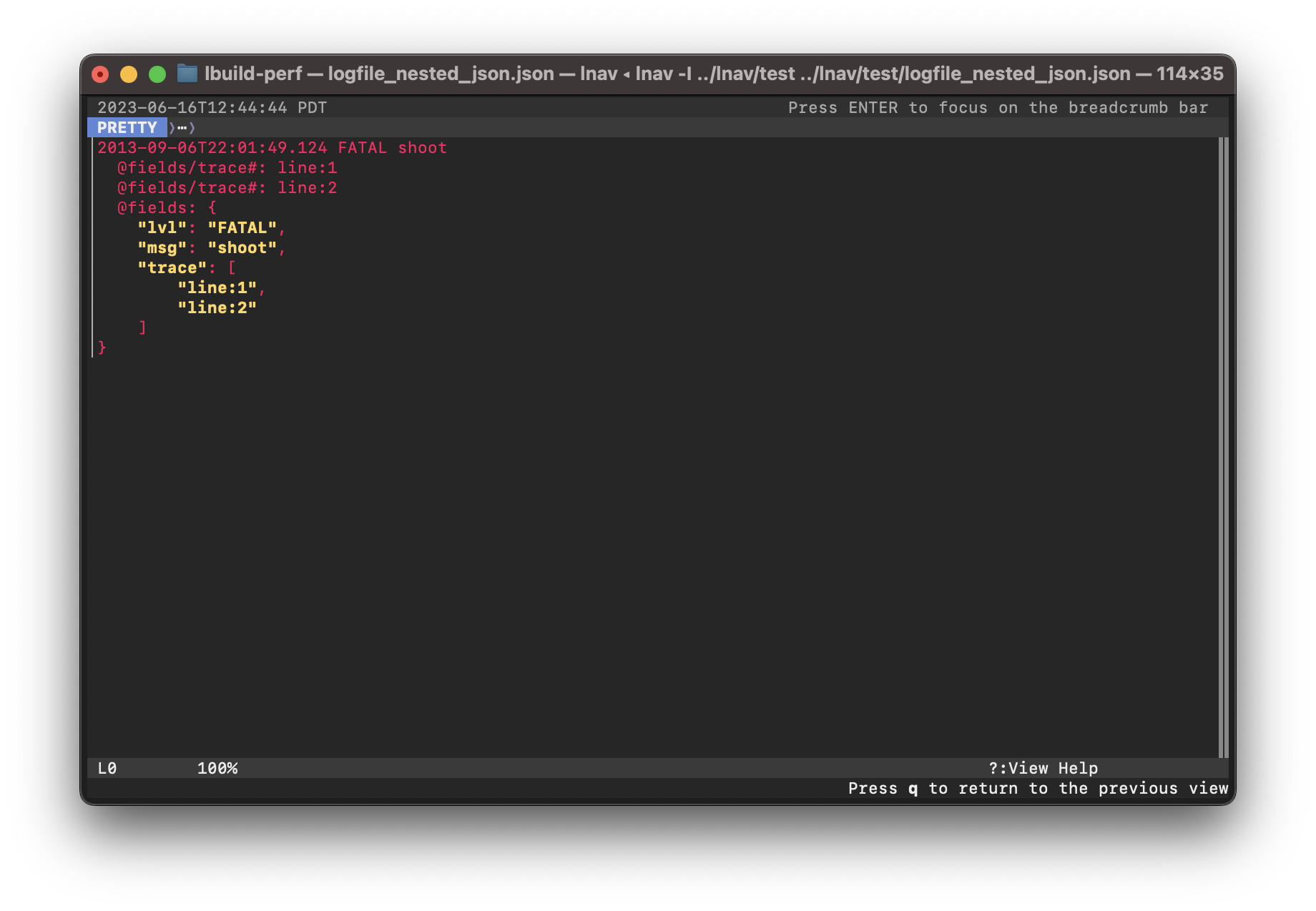

Screenshot of the same log message in the PRETTY view. The JSON object is now indented for easier reading.#

Press Shift + P to switch to the pretty-print view.


The schema view displays the current schema of the builtin SQLite database.

Press ; to enter the SQL prompt and then enter .schema to open the schema view.


The spectrogram view is a “three”-dimensional display of data points of a log field or a SQL query column. The dimensions are time on the Y axis, the range of data point values on the X axis, and the number of data points as a color. For example, if you were to visualize process CPU usage over time, the range of values on the X axis would be CPU percentages and there would be colored blocks at each point on the line where a process had that CPU percentage, like so


Screenshot of the lnav spectrogram view showing CPU usage of processes.#

The colors correspond to the relative number of data points in a bucket. The legend overlaid at the top line in the view shows the counts of data points that are in a particular color, with green having the fewest number of data points, yellow the middle, and red the most. You can select a particular bucket using the cursor keys to see the exact number of data points and the range of values. The panel at the bottom of the view shows the data points themselves from the original source, the log file or the SQL query results. You can press TAB to focus on the details panel so you can scroll around and get a closer look at the values.
